RL5102 type area x- γ Radiation monitoring alarm device

Overview:

RL5102 type area x- γ Radiation monitoring alarm device is a new type of x- γ Radiation continuous monitoring alarm device, used for monitoring radiation/radiation/radioactive sites. When the environmental radiation exceeds the standard, an alarm will be triggered to remind workers to pay attention to safety in a timely manner. It adopts a specially designed preamplifier circuit, which has the characteristics of high sensitivity, easy operation, automatic display, data storage, and over threshold alarm, and can provide real-time x- γ Radiation dose rate. Considering the need for on-site operation, rapid emergency response, and convenient maintenance, a host is installed on site to achieve real-time monitoring and on-site alarm.

Typical applications:

RL5102 type area x- γ Radiation monitoring alarm devices are mainly used to monitor radioactive sites with radiation sources. By measuring the radiation dose rate, they remind workers that the radiation source or radiation device is in working or leaking state, so as to prevent radiation hazards. Places that can be applied:

Environmental monitoring, health and epidemic prevention, hospitals γ Knife therapy, isotope application γ Radiation protection monitoring in fields such as irradiation, hospital X-ray diagnosis, cobalt therapy, non-destructive testing, import and export inspection, radiation medicine, building materials, petrochemical industry, geological survey, docks, ports, scrap steel, nuclear laboratories, etc.

Performance advantages:

L adopts high-speed embedded microprocessors, graphics dot matrix 160 × 160 LCD display, and user-friendly input.

Chinese menu style operation interface.

Three alarm modes are suitable for the needs of various radiation safety alarm locations.

A host can host multiple detectors.

Multiple interface outputs and inputs can form an interlocking system with X-Ray or protective doors.

Real time sampling and fast data processing.

L detector fault indication

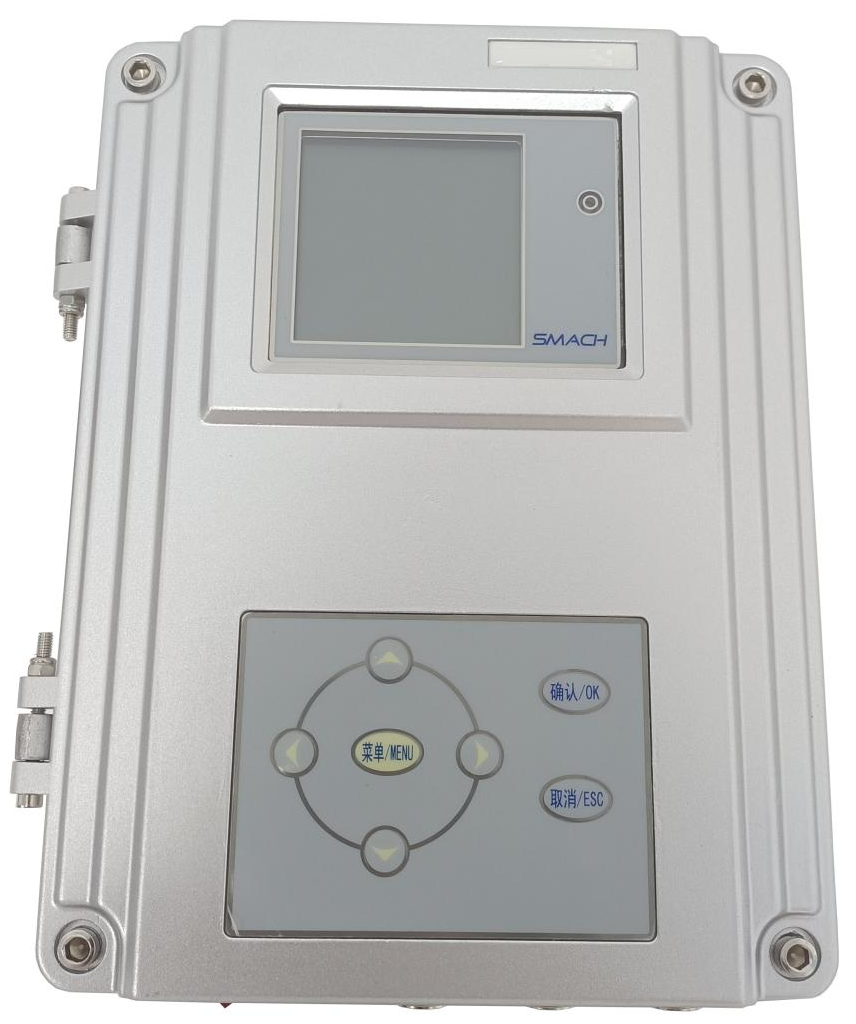

Wall mounted main control box, easy to install.

Communication method: Standard RS485 interface, MODBUS communication protocol, transmission distance up to 800 meters.

Controller technical specifications:

1. Display method: 5.7-inch LCD display.

2. Probe configuration: compatible with SMA series x- γ Probe connection, up to 30 probes can be connected.

3. Display unit: uSv/h.

4. Status indication: Normal/Overload/Fault.

5. Alarm mode: simultaneous sound and light alarm mode, and multiple alarm lights can also be used outside the machine.

6. Alarm modes: Three alarm modes: upper limit alarm, lower limit alarm, and upper and lower limit alarm.

7. Storage function: Automatically store dose rate values that exceed the threshold and abnormal states of the probe.

8. Alarm threshold: 2.5usv/h (factory default), and it can be adjusted by itself, with high and low dual threshold alarm function

9. Usage environment: Working temperature -10 ℃~+45 ℃.

10. Relative humidity: (at a temperature of 40 ℃) ≤ 98%.

11. System power supply: standard configuration for converting 220V to 5V mains power.

12. Fault handling: With self recovery function for faults.

13. External dimensions: 280 x 350 x 100mm (excluding installation base dimensions)
