System model: XRV160KV

System composition:

Spearman high-voltage generator XRV160KV * 1800

XRV controller

High voltage cable, 1 piece, 5 meters, with a complete set of high-voltage generator and X-ray tube flange

Water cooler

X-ray tube Varian HPX160/11

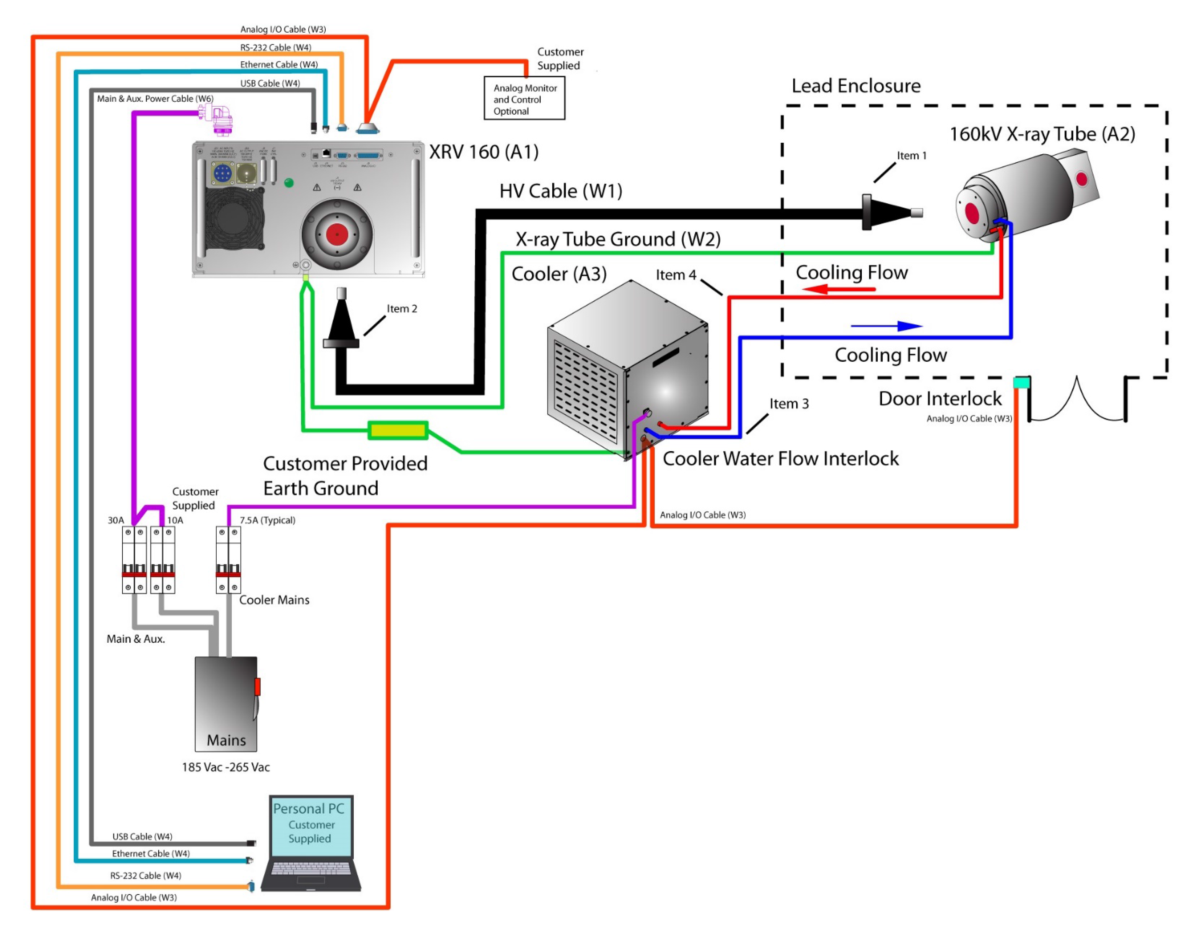

System diagram

Note: The following diagram shows the system diagram for digital and analog control, where IO BOX is an optional component (can be integrated into the detection system control cabinet)

Main technical parameters

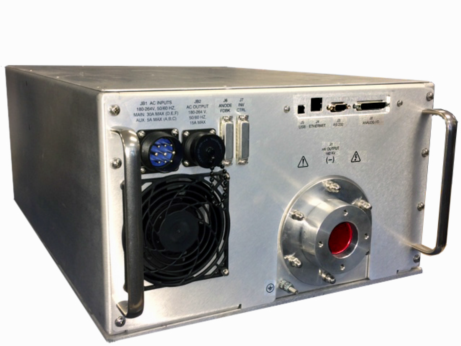

1. Spearman high-voltage generator

l KV range 0-160KV increment 0.1kV

l KV accuracy 0.25%

l KV stability: ≤ 0.1% every 8 hours after preheating for 1 hour

l MA range 0-30mA incremental 0.1mA

l MA accuracy 0.25%

l MA stability of 100ppm/° C

l Maximum power 1800W

l Linear adjustment+/-0.005%

l Load adjustment+/-0.05%

l Ripple/noise ＜ 0.025%

lInterface connector digital Ethernet, analog-25 pin connector, RS-232 and USB

l Cooling forced air cooling

l Output connector R24

lInput voltage 180-264vac, single item 47-63HZ

l Input current ＜ 30A/220V AC

l Cathode size 10.5 "H x 17" W x 24 "D

l Working temperature 0-50 degrees

l Humidity 20% -85% Humidity

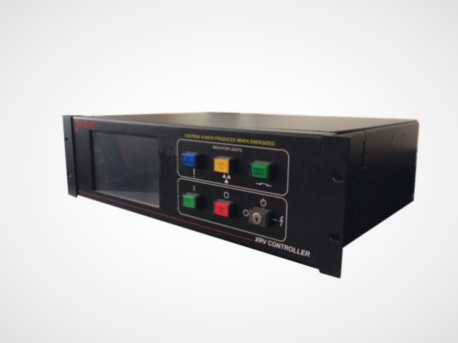

1. XRV controller

l Input voltage AC 220V, ± 10%

l Input current 0.5A

l Installation size 133.35mm x 482.6mm x 330.2mm

l Weight 5.44Kg

l Humidity 0% to 95%

l Storage temperature -20 ℃ -+80 ℃

l Working temperature 0 ℃ -+50 ℃

l Digital interface RS232

l Cooling convection air cooling

l Input power connector 14 pin circular connector

l Training mode selection

l Manual mode selection

l 4 training modes to choose from

l Warning time setting

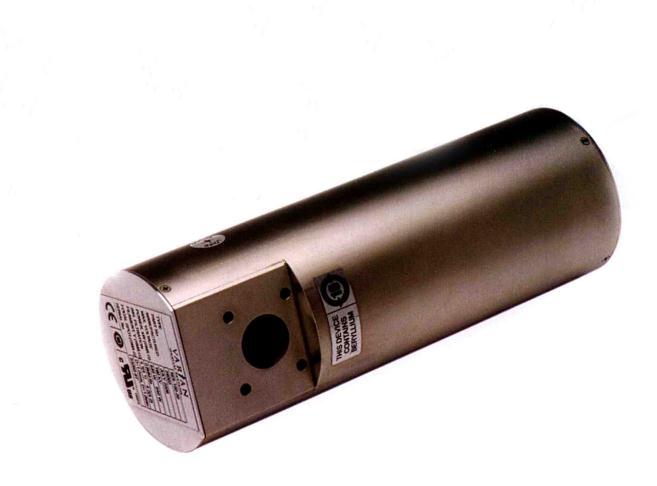

3. X-ray tube Varian 160HP/FB

l Type: Metal ceramic X-ray tube

l Target electrode material: tungsten target

l Focus size: d=0.4mm x 1.0 mm (EN12543 standard)

l Target angle: 11 °

l Radiation angle: 40 ° x 30 °

l Inherent filtration: 0.8mm beryllium

l Maximum power: 1800W

l Maximum tube voltage: 160kV

l Maximum tube current: 11.25mA@160kV

l Maximum filament current: 4.1A

l Typical filament voltage: 3.0V

l Leakage rate at 1m: 2.5mSv/h @ 160 kV, 6.25mA

l High voltage cable joint: R24

lCooling flow rate: 4 L/min

l Cooling medium: water cooling

l Weight: 8KG

4. High voltage cables

Model 160KV R24/R24, 5-meter high-voltage cable, 1 piece

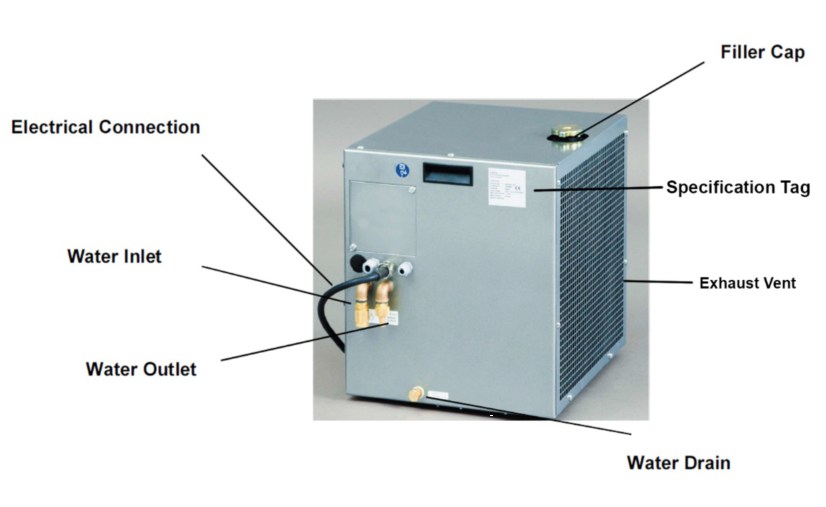

5.Cooling system (WL3000S)

l Chiller: water-cooled

l Cooling power: 3000W

l Input voltage 230V+10% -15% 48-62HZ

l Flow rate 5.4L/min @ 4bar

l Cooling liquid capacity 4.0L

l Environmental temperature+5 ° C -+40 ° C

l 10M water pipe, 2 pieces

l 1 power cable

l 1 signal cable

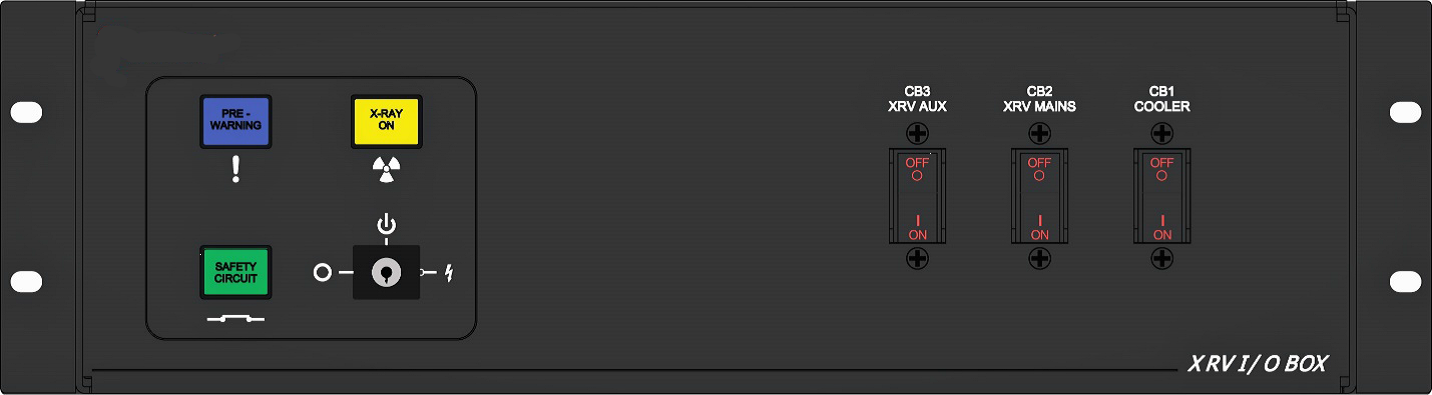

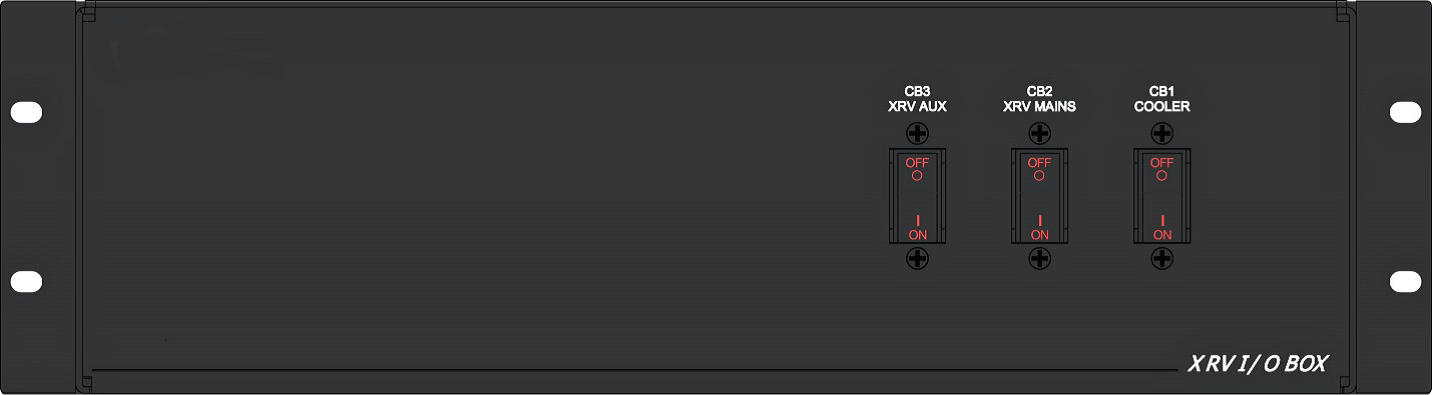

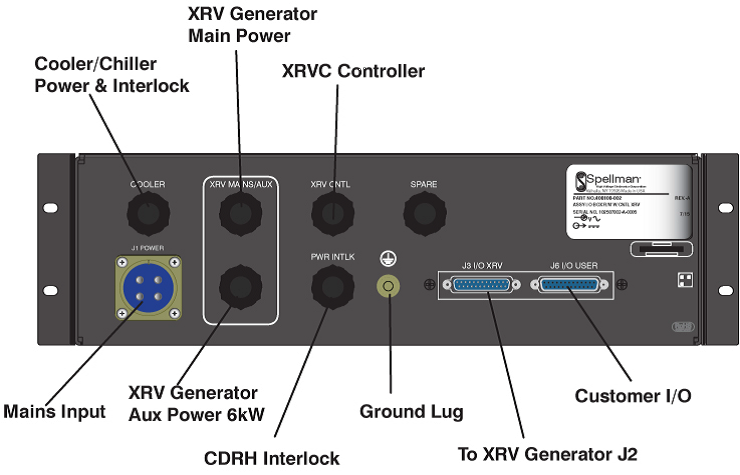

6. IO BOX (optional)

l Main power and auxiliary power control

l Cooling power output

l Cooling signal transfer

l Control signal transfer

l Interlocking signal transfer

l Warning light adapter
