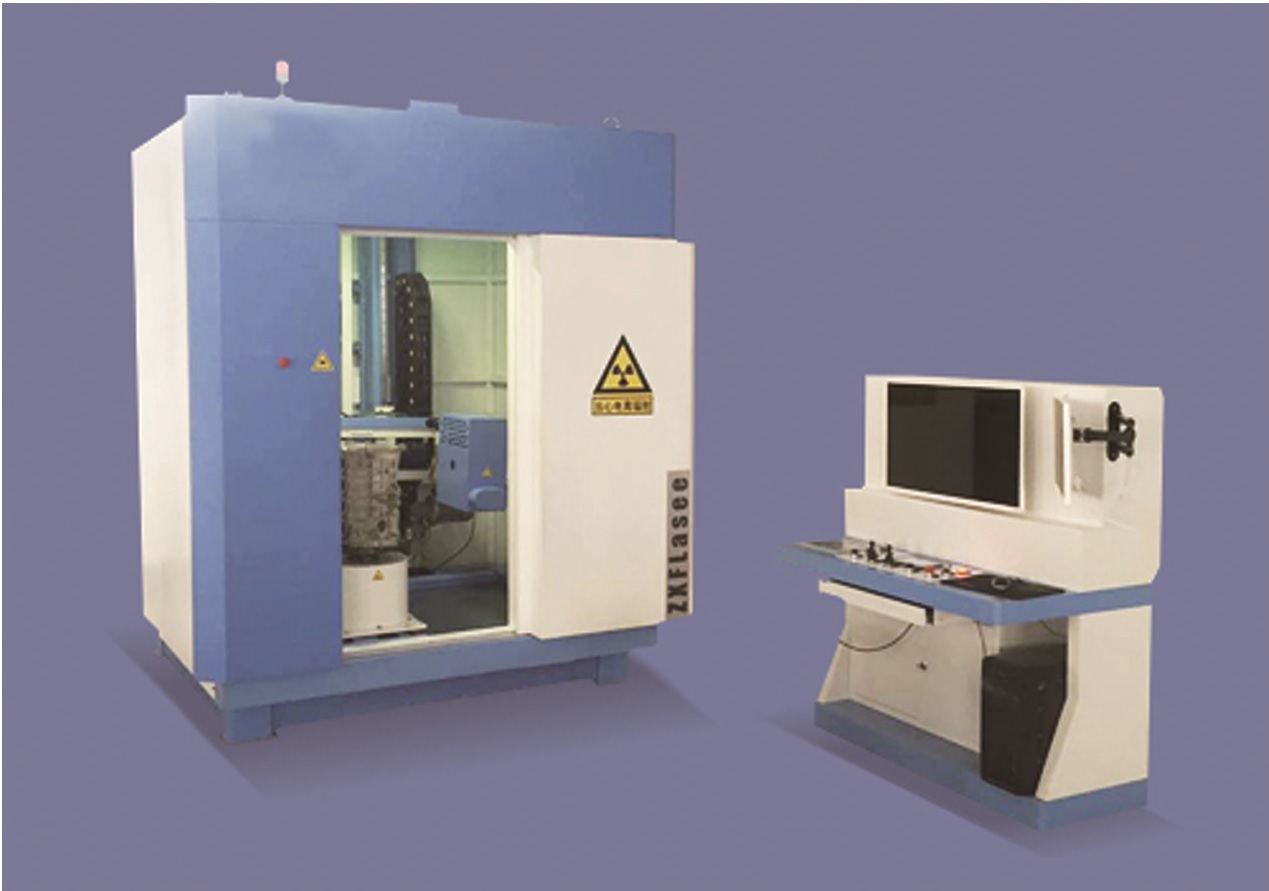

D-series offline X-ray digital imaging detection system
The D series offline inspection system is a series of inspection systems developed in detail based on years of application experience, aimed at the quality control needs of castings of different specifications and sizes (aluminum, steel, resin, etc.) and small and medium-sized welded parts (gas cylinders, high-voltage electrical shells, etc.).
Segmenting application requirements and providing the best cost-effectiveness
|
Exquisite (micro)
| Optimized (small) | Standard (Medium) | Perfect type (large) | Simplified |
model | D-U type | D-Atype | Dtype | D-Ltype | D-Stype |
Check the size of the workpiece | 120x120x100 | 400x400x500 | 600x600x1000 | 800x800x1200 | 400x400x150 |
machine overall size | 450x450x800 | 1600x1200x1600 | 2000x1800x2000 | 2200x2200x2400 | 1000x1000x2000 |
Ray energy | 120kV | 160kV | 160-450kV | 160-450kV | 160kV |
Focus size | 50μm | d=1.0mm（EN12543） | Glass tube:d=1.0mm（EN12543）
Metal tube:d=0.4 / d=1.0mm（EN12543） | d=1.0mm（EN12543） |
Plate size | 13x325px | 13x13 / 40x1000px | 20x20 / 40x1000px | 20x20 / 40x1000px | 40x1000px |
sensitivity | 1-1.5% | 1-1.5% | 1-1.5% | 1-1.5% | 1-1.5% |
resolving power | >10lp/mm | >2.4lp/mm | >2.4lp/mm | >2.4lp/mm | >3.0lp/mm |
Translucent thickness | Fe 10mm Al 50mm | Fe 20mm(Static) Al100mm(Static) Al 60mm(Dynamic) | 160kV：Fe 20mm/ Al 100mm(Static) 225kV：Fe 30mm/ Al 200mm(Static) 320kV：Fe 55mm/40mm(Static/Dynamic) 450kV：Fe 70mm/50mm(Static/Dynamic) | Fe 20mm (Static) Al 100mm(Static) |
Load capacity | 5kg | 30kg | 100kg | 200kg | 20kg |
Overall weight | 500kg | 2t | 160kV 3.5t 225kV 5t 320kV 8t 450kV 16t | 160kV 4.5t 225kV 6t 320kV 10t 450kV 18t | 2t |
Whole machine power
| <3kW | <5kW | <10kW | <10kW | <5kW |
Leakage dose | <1μSv/h | <1μSv/h | 160/225kV<1uSv/h320/450kV<2.5uSv/h | <1μSv/h |
Lead doors for entry and exit | Manual | Manual | Electric/single door/anti pinch light curtain | Electric/double door/anti pinch light curtain | Electric/single door/anti pinch |
Loading platform |
X/Y/Z-axis motion Not leaving the lead room
|
X/Y/Z-axis motion ± 10 ° inclination angle Not leaving the lead room
|
X/Y axis motion Not leaving the lead room
|
X/Y axis motion Half discharge lead room
|
X-axis motion Lead discharge room
|
Ray path |
Vertical translucency fixed
|
Horizontal translucency fixed
|
Horizontal translucency U-arm inclination angle ± 30 ° Z-axis movement 1200mm
|
Horizontal translucency U-arm inclination angle ± 30 ° Z-axis movement 1400mm
|
Vertical translucency Z-axis adjustable separately
|
All adopt high-frequency and high-voltage technology, with stronger penetration and more stable radiation; The separated high-frequency and high-voltage generator is guaranteed for 2 years.
Domestically produced image detectors with superior performance and more convenient services
Raylon image filtering technology for steel and aluminum subdivision processing, making images clearer
Image processing and enhancement functions
| Real time observation | Captured images |
Image filtering enhancement |
There is (1 type)
| There are (5) options, and image capture can automatically attach selected filtering processing |
ROI Quick Grayscale Adjustment | have | have |
Stepless scaling/image flipping | have | have |
Dimensional measurement | have | have |
Size marking |
| have |
Integral noise reduction | 2/4/8 | 2/4/8/16/32/64/128/256 |
Negative/Pseudo Color | have | have |
videotape | have |
|
Image information labeling |
Yes (Video recording can simultaneously record marking information)
| have |
Storage format | avi | bmp / png / jpg / tiff(8bit/16bit) / RAW / his / dcm |
